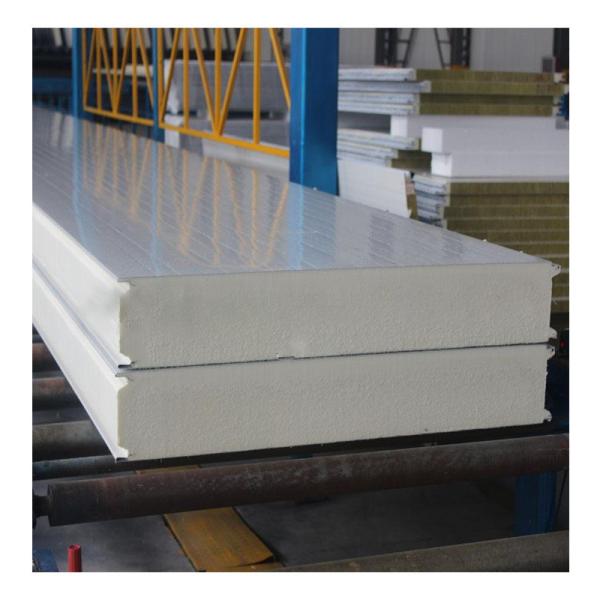

Product overview
It is the choice of two-layer quality color coated steel plate or
other precision pressed metal sheet as the surface material, roll
molding, the middle injection of flame retardant polyurethane foam
liquid, after high pressure foaming curing and other specific
process conditions, and the strong adhesion and characteristics of
the metal panel composite into a beautiful, flat, tough building
board.
Usage of Product
The product is based on polyurethane rigid foam as a thermal
insulation layer of bimetallic surface, single metal surface,
non-metallic surface,

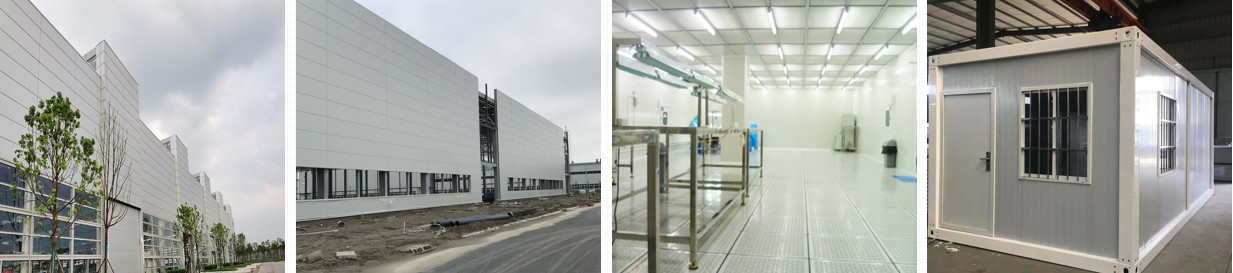

commonly used in industrial plants, integrated Hengyu wall, roof
enclosure system.
peculiarity
Polyurethane wall panel adopts dark nail type connection surface
without exposed screws, so that the building has a beautiful
appearance.
High strength: The panels of polyurethane sandwich sheets are
usually made of high-strength materials such as steel or aluminum
sheets, which make them have high bending and compression
resistance.
Polyurethane wall panel has a variety of appearance effects (small
ripples, flat, relief, embossed reinforcement) for users to choose,
is the latest building exterior wall panel.
Specifications
Effective width
|
1120(mm)
|
Length
| According to customer's request, less than 11.8m.
|
Materials
|
,Polyurethane foam panel,Color steel tile
|
Structure
| Upper and lower layer: Color steel sheet |
Middle: Polystyrene foam board |
Density | 40-45 kg/m³ |
Conventional color | White, sea blue, red etc. |
Life time | White, sea blue, red etc. |
Performance | Light weight, heat insulation, water resistant, green and
environmental |
Usage | Roof, Wall, Ceiling, Partition |
packing
