Product introduction
Heat insulation material for lower construction cost.

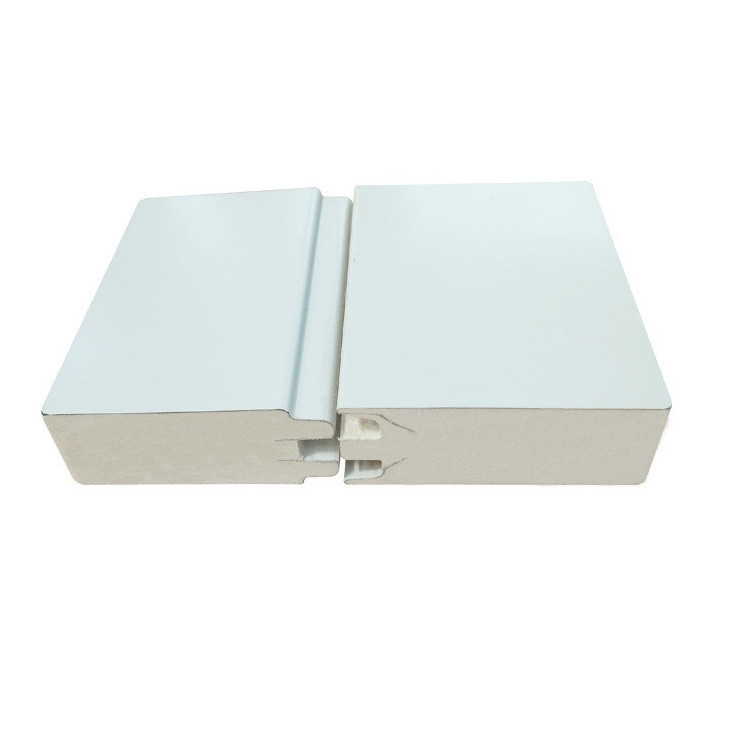

PU Sandwich Panel (Polyurethane Sandwich Panel) is composed of 2
layers of weather proof coloured covering sheets as per desired
materials mainly steel, aluminium, coloured steel, or stainless
steel, and jetted the hard forms of polyurethane between the two
layers.
PU cold storage room panel is a kind of board used for enclosing
structures, which has good heat insulation and higher intensity.
It can reduce the heat transmission caused by difference in the
internal and external temperature, and get to maximum efficiency of
freezing and refrigeration systems.
peculiarity
Heat and sound insulation. Temperature suitable for PU ranges from
-200 centigrade to 150 centigrade.
Advanced Tech: Automatic rolling machines make the whole process of
manufacture effective.
The high flexural bearing capacity of the polyurethane wall panel
makes the wall have better mechanical properties and thermal
insulation properties, while reducing the need for auxiliary steel
structure.
advantage
The closed hole ratio of energy-saving thermal insulation core
material is greater than or equal to 97%
Green environmental protection does not contain formaldehyde, is
not affected by microorganisms can be recycled
Flame retardant and fire retardant products have passed the
inspection, and the combustion grade has reached Class B standard
Good sound absorption, sound absorption of rain, hail and other
impact caused by the sound has a reduction effect
specification
Steel Thickness
| 0.3~0.8mm
|
Panel thickness
| 50/75/100/120/150 /200mm
|
Effective width
| (1) 960/mm —for roof
(2) 925/960/1125mm—for wall or ceiling
|
Length
| According to customer’s request, less than 11.8m
|
Materials
| A polyurethane (PU) core and color-coated steel tiles on both sides
|
Structure
| The panel is composed of three layers:
(1) The top layer is made of durable steel sheet material.
(2) The inner layer is a high-quality PU sandwich that provides
excellent insulation.
(3) The bottom layer is also made of steel sheet material for added
strength and stability.
|
Density
| 38-45(kg/m³), etc.
|
Color
| blue, white grey or other color
|
Parts
| (1) Steel lines that make it easy to connect them together
seamlessly
(2) A film covering to protect the steel panels from damage during
transport and installation.
|
Lifetime
| 15-20 years
|
Features
| Light in weight, heat insulation, fireproof and waterproof,
environmentally-friendly
|
Usage
| Suitable for large-sized factory buildings, storage facilities,
exhibition halls, gymnasiums, and other structures for roofing and
wall cladding
|
